Compatible WESTWIND WWD1822 200,000RPM KL200L Air Bearing Spindle PCB PRECISION DRILLING
Quick Detail :
| MODEL | REPLACE FOR | DESCRIPTION | Application | Machine reference |
| KL200L | D1822 | SPEED RANGE : 20,000 - 200,000 rpm Ø6.35mm-0.05mm precision drilling | Static Run Out :<2µm Dynamic Run Out :<8µm Vibration : 0.5 MM/S | KLINGINBERG PLURITEC HITACHI LENZ SCHMOLL ANDERSON …. |
PRODUCT DESCRIPTION
KL200L higher speed rotation and higher accuracy spindle replace for WESTWIND WW D1822 Full Range from 20,000 to 200,000 rpm, air bearing type in long life, spindle weight 4.3kg with COLLET size 1/8” and body size Ø 61.9.'
Max power : 0.9KW
Air Pressure : 6.0 -6.5kgf/cm²
Coolant : Water oil
Fixed voltage : 215V
Fixed current : 4A
FREQUENCY (HZ) : 334-3570
PTC Or NTC SENSOR For choose (Data pl. inquiry)
Competitive Advantage :
Low Static
Low Dynamic RUN OUT
Stable character and long life
Power and very low heat generation
ATC feeder / ATC tool change for micromachining
KLKJ Advantage
The higher spindle speeds available allow for increased productivity whilst ensuring that accuracy and repeatability is maintained.
Advanced analysis and detailed design has created a spindle with exceptional reliability and increased efficiency.
APPLICATION :
PRINT CIRCUIT BOARD PRECISION DRILLING
HOLE RANGE: Ø6.35mm-0.05mm
MACHINE REFERENCE: KLINGINBERG PLURITEC ；HITACHI ；LENZ ；ANDERSON;SCHMOLL ….
SPECIFICATION :
| Coolant water temperature | 20+2 |
| Static runout | <2µm |
| Dynamic runout | <8µm |
| Collet torque(N.cm) | >15.2( 1/8”) |
| Vibration | 0.5MM/S |
| Temperature sensor ohms KΩ | R=0.10±5% AT 25℃ |
| Open air pressure | <5.0kg/cm² |
| Close air pressure | >2.5 kg/cm² |
| Coolant water flux | >0.8(L/min) |
| Coolant oil flux | >1.5(L/min) |
| Air consume flux at 20krpm | 58(L/min) |
| Radial load | 6.0kgf |

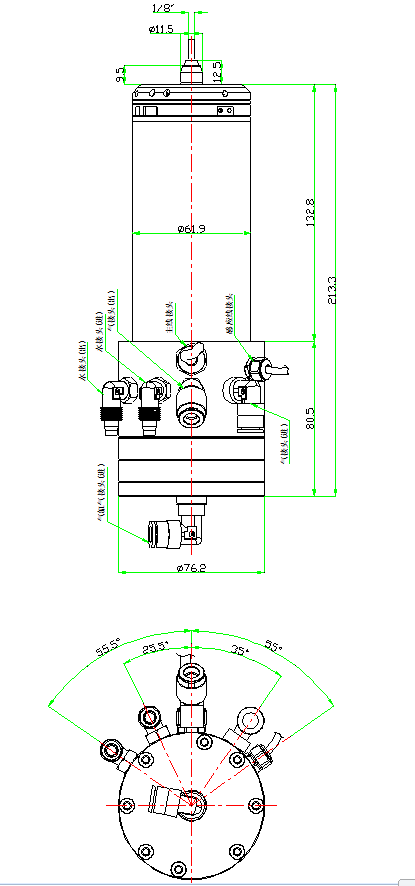

Spindle outline drawing
